My Fender single coil replacement pickups are made using precision CNC and laser-cut forbon vulcanized fiberboard, select premium quality Alnico magnets in grades 2, 3, 4, 5, or 6, use Formvar, Plain Enamel, or Poly-nylon insulated coil wire depending on the model, and have cloth push-back lead wires with a cloth tape finish.
All single coil pickups are wax potted.
All single coil sets are RWRP standard. If you would like a non-RWRP set, please note this in the “Order Notes” at checkout.
My P90 and humbucking guitar pickups are made using nickel silver baseplates and covers, molded plastic or butyrate bobbins, Alnico magnets in grades 2, 3, 4, 5, and 8 as well as Ceramic magnets in grades 5 and 8, wound with Formvar, Plain Enamel, or Poly-nylon insulated wire depending on the model, and are available with braided single, 3 conductor, or 4 conductor lead wires.
All pickups are wax potted, except for the VPAF models.
Don’t see what you’re looking for? I’d be honored to create something special for you and wind to your specifications. Please get in touch to discuss your custom build.
-
Firebird – FBM1
$160.00 – $320.00 Select optionsI really enjoy building these- such a distinctive and versatile sound. I wind these up in the traditional style using Alnico 2 magnets and nickel silver frames. Your choice of lead wire and covers. Mounting … Read More
-
Firebird – FBM2
$160.00 – $320.00 Select optionsSimilar to the FBM1 set, but with Alnico 5 in both position. These pickups feature Alnico 2 magnets, nickel silver frames. Your choice of lead wires and covers. Mounting screws and springs included. 6.77k Neck … Read More
-
Humbucker – GHB1
$140.00 – $300.00 Select optionsA modern take on the vintage humbucker style, this set features nickel silver short leg frames, a mix of 42awg wires on the bobbins, select cold rolled steel slugs and pole screws, a USA made … Read More
-
Humbucker – GHB1+
$140.00 – $300.00 Select optionsFor those who love the GHB1 but need more warmth and drive, this is it. A modern take on the classic humbucker style, this set features nickel silver short leg frames, a mix of different … Read More
-
Humbucker – GHB2
$140.00 – $300.00 Select optionsAn even more modern take on the classic humbucker style, edging on high output but not quite! This set features nickel silver short leg frames, a mix of different wire on the bobbins, select cold … Read More
-
This specialty bridge pickup will light up your amp and is great for moderate to high gain applications. Double rows of select steel screw poles for the ultimate in tweakability and a scorching rock tone. … Read More
-
Humbucker P90 – HBP90
$165.00 – $330.00 Select optionsThis is the humbucker-sized version of the VP90. 42 Plain wound to a toneful variation of the vintage specification, select steel screw poles, your choice of Alinco, your choice of cover, and your choice of … Read More
-
Humbucker P90 – HBP90+B
$165.00 – $330.00 Select optionsA higher output humbucker-sized P90 set: 43 wire on the bridge, 42 on the neck. This pickup uses select steel screw poles, your choice of Alnico, your choice of cover, and your choice of lead … Read More
-
KB Custom Bridge – GHB4B
$140.00 – $160.00 Select optionsThis specialty bridge pickup uses 53mm spacing and is ideal for high gain applications using modern locking tremolo systems. Great output, a clear, balanced, and very linear tonal response up and down the neck with … Read More
-
Mini Humbucker – MHB1
$160.00 – $320.00 Select optionsDone up in the classic style, I wind these to vintage specification. These pickups feature full length roughcast Alnico 2 magnets, nickel silver frames, and select cold rolled steel pole screws. Your choice of lead … Read More
-
Mini Humbucker – MHB2
$160.00 – $320.00 Select optionsSimilar to the MHB1 set, but with Alnico 5 in both position. These pickups feature full length roughcast magnets, nickel silver frames, and select cold rolled steel pole screws. Your choice of lead wires and … Read More
-
PAF – VPAF1
$200.00 – $400.00 Select optionsMy favorite late 50’s PAF variant. This set features USA made long leg nickel silver frames, hand-threaded premium USA made machined steel keeper barkeeper and frame pole screw holes for 100% positive contact, butyrate bobbins … Read More
-
PAF – VPAF2
$200.00 – $400.00 Select optionsMy other favorite late 50’s variant! This set features USA made long leg nickel silver frames, hand-threaded premium USA made machined steel keeper barkeeper and frame pole screw holes for 100% positive contact, butyrate bobbins … Read More
-
PAF Neck- VPAF3N
$200.00 Select optionsThis specialty Alnico 3 neck pickup features a USA made long leg nickel silver frame, hand-threaded premium USA made machined steel keeper barkeeper and frame pole screw holes for 100% positive contact, butyrate bobbins wound … Read More
-
PAF Neck- VPAF4N
$200.00 Select optionsThis specialty Alnico 4 neck pickup features a USA made long leg nickel silver frame, hand-threaded premium USA made machined steel keeper barkeeper and frame pole screw holes for 100% positive contact, butyrate bobbins wound … Read More
-
Single Coil P90 – VP90
$110.00 – $220.00 Select optionsI love P90s and do mine in the 50’s style: 42 Plain wound to a toneful variation of the vintage specification, select steel screw poles, your choice of Alinco, your choice of covers, and your … Read More
-
Single Coil P90 Plus – VP90+
$110.00 – $220.00 Select optionsA ragged, rocked up version of the VP90. 42 Plain wound to a variation of the vintage spec, select steel screw poles, your choice of magnet, your choice of covers, and your choice of lead … Read More
-
Strat – VS5
$100.00 – $300.00 Select optionsI had the sounds of the earliest examples in mind in creating these. Beautiful and clear sounding with rosewood or maple boards, this set uses Alnico 3 and 42H wire, push-back cloth leads and a … Read More
-
Strat – VS5+
$100.00 – $300.00 Select optionsSimilar to the SV5 but with more output for those needing…more output! This set uses Alnico 3 and 42H wire wound to a hot 50’s specification. Push-back cloth leads and a cloth tape finish. Chose … Read More
-
Strat – VS6
$100.00 – $300.00 Select optionsRight around 1964/65, the spec changed slightly and for some this is the defining tone. This set uses Alnico 5 magnets and 42 Plain Enamel wire wound to era-correct specs. Push-back cloth leads and a … Read More
-
Strat – VS6+
$100.00 – $300.00 Select optionsFor those wanting a more muscular strat sound, this set really turns up the heat nicely. Push-back cloth leads and a cloth tape finish. Chose your cover. Mounting screws and rubber tensioners included. 6.10k Neck … Read More
-
Tele – VT4
$125.00 – $250.00 Select optionsInspired by the sounds of the earliest Teles, this is my own variation of that classic, quintessential Tele tone. Using 43 Plain Enamel and Alnico 3 magnets on both the bridge and neck pickups, these … Read More
-
Tele – VT5
$125.00 – $250.00 Select optionsThat clean, vibrant sound featured on so many records of the 1960s is what you’ll find here. I’ve taken the liberty smooth out the spikes on the bridge and open up the tone on the … Read More
-
Tele Bridge – VT4+
$125.00 Select optionsSimilar to the TV4 Bridge pickup, but loaded up with 43 wire on Alnico 5 magnets. If you’ve got an overly bright Tele or are craving a spicy hot, ballsy twang, this is what I’d … Read More
-
Tele Bridge – VT5+
$125.00 Select optionsA variation of the early Telecaster bridge pickup featuring 42 wire stacked up thick over Alnico 5 rod magnets for a big, P90-esque style of Tele twang. These are assembled, lacquered, and handwound. Cloth push-back … Read More
My Fender replacement bass pickups are made using precision CNC and laser-cut forbon vulcanised fiberboard, premium quality Alnico 5 magnets, formvar, plain enamel, or poly nylon insulated wire, cloth push-back lead wires, and are finished with cloth tape.
All sets are RWRP standard.
My humbucking pickups are made using nickel silver baseplates and covers, molded plastic or butyrate bobbins, Alnico magnets in grades 2, 3, 4, 5, formvar, plain enamel, or poly nylon insulated wire, and either braided single, 3 conductor, or 4 conductor lead wires.
All bass pickups are wax potted.
Don’t see what you’re looking for? I love doing custom builds and would be happy to create something special for you.
-

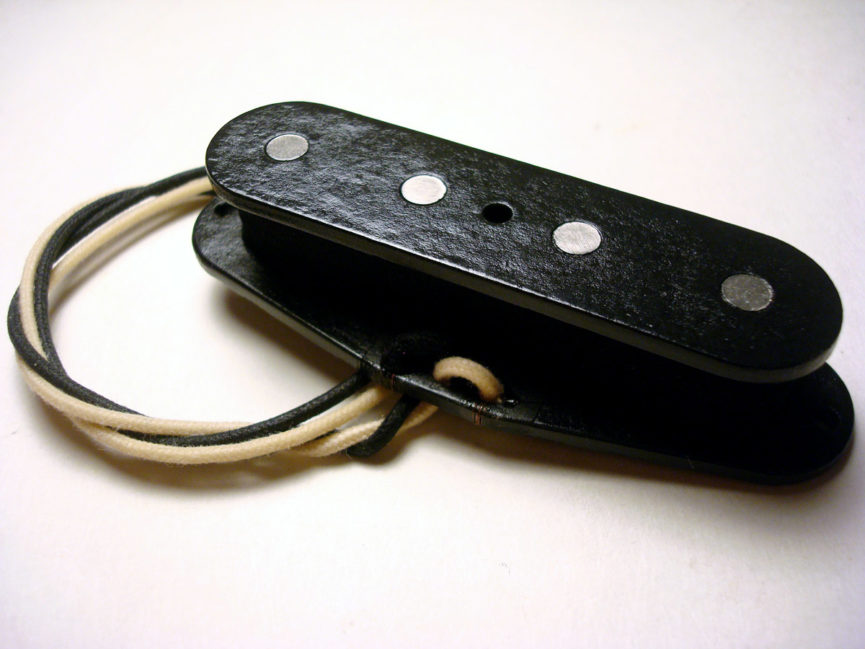

The dual coil Precision bass pickup was introduced in 1957 and delivers a stronger and more authoritative sound than its single coil predecessor. Assembled, lacquered, and handwound to a healthy late 50’s specification using 42 … Read More
-
This one bumps up the late 50’s dual coil Precision bass tone while still retaining the classic character. More really IS better sometimes! Assembled, lacquered, and handwound to a healthy late 50’s specification using 42 … Read More
-
Right around 1962 the recipe changed slightly, creating the legendary tones that we all know and love. Do I have to name names? Of course not! Assembled, lacquered, and handwound to vintage specifications with 42 … Read More
-
Someone got a little distracted one day in 1963 while they were winding up some P coils, or it could have been the paint fumes maybe. The result was a fat, juicy soul machine of … Read More
-
Firebird Bass Mini Humbucker – FBBM1
$160.00 – $320.00 Select optionsA fantastic upgrade or retrofit to a number of Epiphone and Gibson basses, these pickups have a clear, woody voice with extended frequency response and a full, present sound. These feature nickel silver frames, Alnico … Read More
-

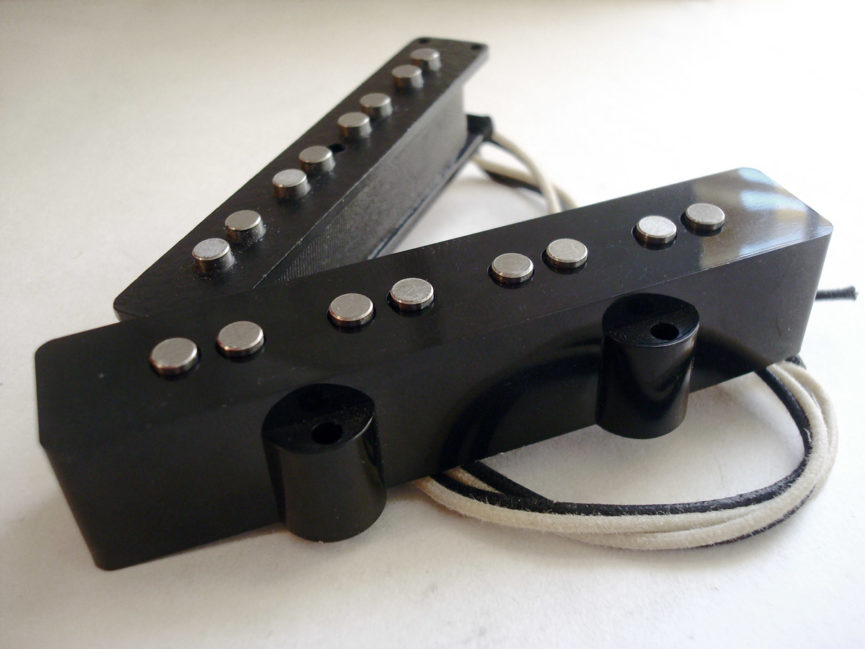

Jazz Bass – JBV5
$110.00 – $220.00 Select optionsThe Fender Jazz bass made it’s debut in 1960 and it’s impact on the bass community was lasting and uniquely powerful. These are assembled, lacquered, and handwound to vintage specifications with 42 Heavy over hand-beveled … Read More
-
Jazz Bass – JBV5+
$110.00 – $220.00 Select optionsFor those who need MORE of that original ’60 Jazz bass tone, this set is just the ticket. Big, organic notes that bloom. Assembled, lacquered, and handwound to a healthy vintage specification that uses 42 … Read More
-
Jazz Bass – JBV6
$110.00 – $220.00 Select optionsRight around 1962, 42 Plain Enamel wire began to be used for Jazz Bass pickups and some would consider this to be the defining sound. These are assembled, lacquered, handwound to vintage specifications, use hand-beveled … Read More
-
Jazz Bass – JBV6+
$110.00 – $220.00 Select optionsYes, you guessed it- the JBV6+ is the meatier, fatter version of the JBV6. Same 42 Plain Enamel over hand-beveled Alnico 5 magnets- assembled, lacquered, and handwound to a generous vintage specification. Cloth push-back lead … Read More
-
This is a special neck position pickup, modeled after an odd “mistake” that Fender decided to install in a Jazz bass and sell in 1963. 1963 again – what’s up with that?! Anyway, a friend … Read More
-
The one that started it all! Assembled, lacquered, and handwound to vintage specifications with 42 Plain Enamel over Alnico 5 magnets with cloth push-back lead wire and a cloth tape finish. Flatpole standard. 7.68k
-
For those needing more muscle and meat, this is the answer. Assembled, lacquered, and handwound to vintage specifications with 42 Plain Enamel over Alnico 5 magnets with cloth push-back lead wire and a cloth tape … Read More
